Design strip brush

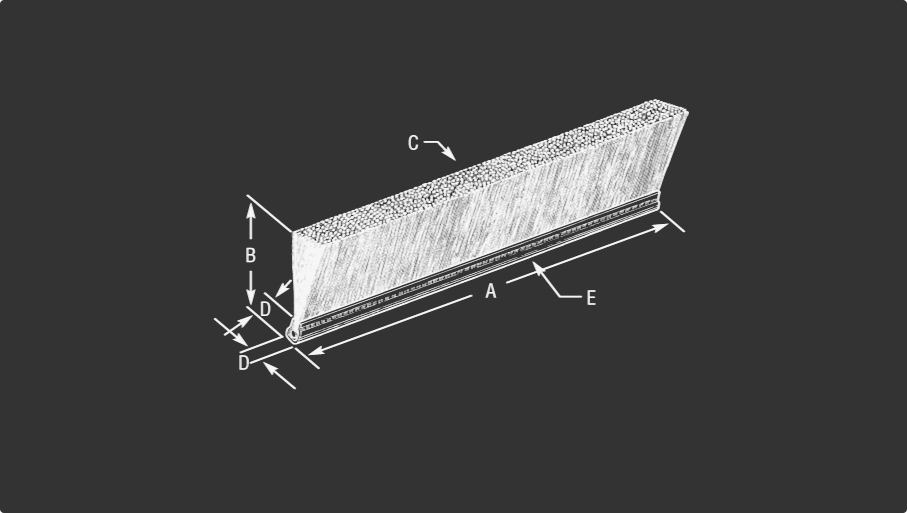

Overall Brush Length
Overall brush length refers to the total length of the brush, including the base, filaments, and any mounting hardware.
50mm-5000mm
Overall Trim Length
The overall trim refers to the total length of the brush filaments, including any part of the filament embedded within the brush base.
10mm-500mm
Fill Material
The fill material used in a strip brush determines its performance and suitability for various applications.
Nylon, pp, Brass, Metal, Horse Hair, Aluminum oxide, Silicon
Fill Diameter
The fill diameter refers to the thickness of the individual filaments used in a strip brush.
0.05 mm(For fine and delicate brushing applications) -3 mm (For cleaning and deburring tasks)
Metal Backing (Channel) Material
The metal backing, or channel, is the U-shaped structure that holds the filaments in place, providing support and rigidity to the brush. The channel size can vary depending on the application and the brush’s intended use.
Galvanized Steel, Stainless Steel, Aluminum, Brass
Metal Backing (Channel) Height
The channel height refers to the vertical measurement of the U-shaped metal channel. This parameter can vary depending on the brush’s intended use and the required support for the filaments.
3.2 mm-25 mm
We mainly produce Sanitation brushes, industrial brushes and polishing brushes, and we can provide you any brush you want.
Straight strip brushes — also known as strip brushes, channel brushes, and metal channel strip brushes — are linear brushes that consist of a center wire, a metal channel, and brush filaments.
These brushes can be custom designed to be anywhere from one inch long to as large as 10, 12, or even 14 feet — any shippable size. As needed, we can even custom design a special crate for shipping larger brushes.
Filament trim can be very short or very long, ranging from approximately 3/8 inch up to around 8 inches. The brush size and trim combinations are practically endless.
Our unique, custom made brushes are used across a variety of industries for a wide assortment of applications. From small anti-static brushes used in the printing industry, to medium-sized conveyor brushes used to keep products moving in a single direction, to large brush seals used on doors to keep out the elements, and countless applications in between, we are an china brush manufacturer that prides ourselves on providing just the right brush for your unique purposes.
With brush applications limited only by your imagination, the Precision Brush team is on hand to design a custom brush to your desired specifications. We’ve even designed brushes for secret or proprietary applications!
