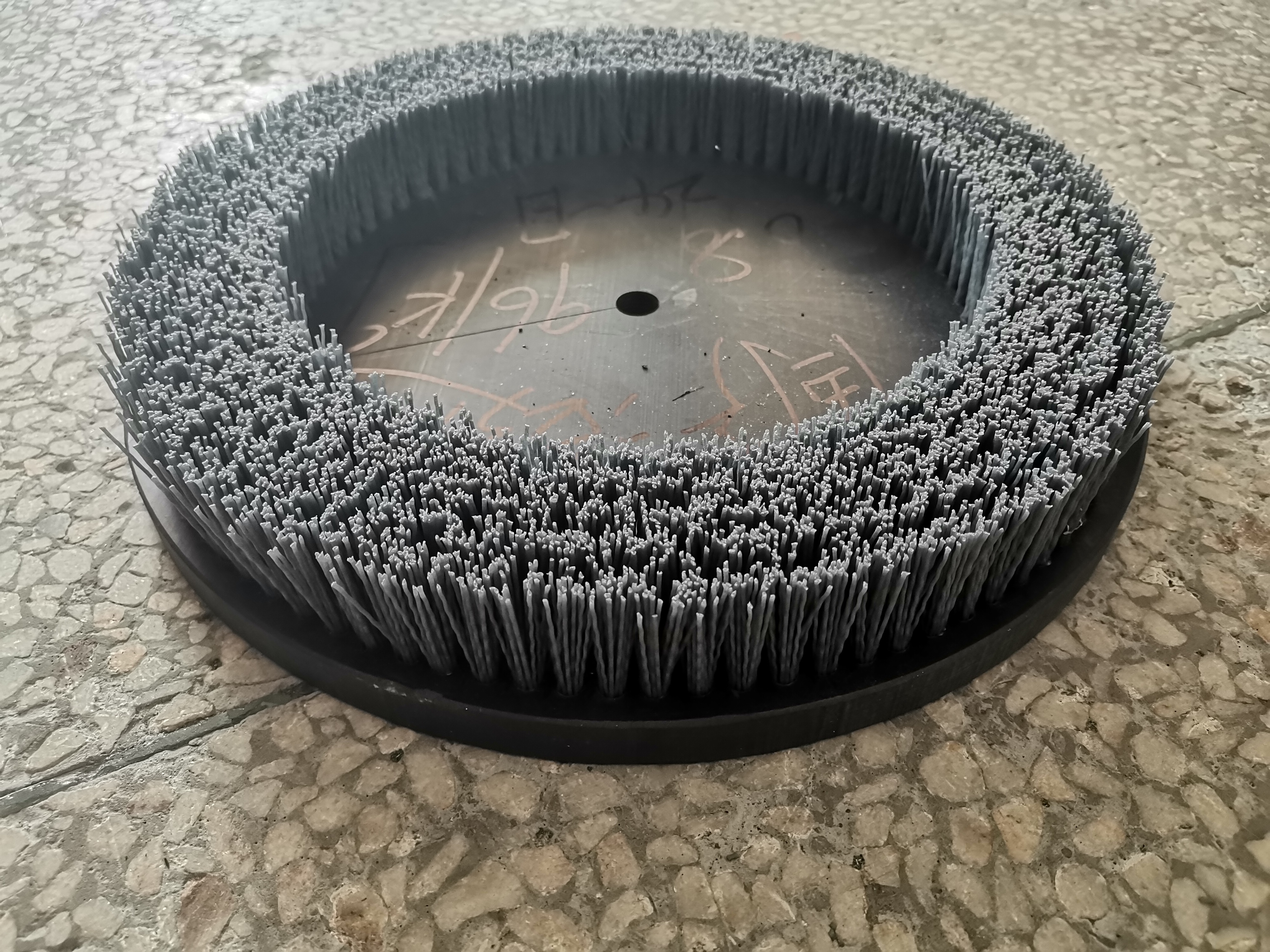

Deburring disc brush
Grade: industrial grade
Warranty: half a year
Type: disc brush
Customization support: OEM, ODM
Bristle length: any length and size customized
Place of Origin: Anhui, China
Brand Name: JHX Brush
Brush material: any material
Grade: industrial grade
Warranty: half a year
Type: disc brush
Customization support: OEM, ODM
Bristle length: any length and size customized
Place of Origin: Anhui, China
Brand Name: JHX Brush
Brush material: any material
diameter
Small: 50mm - 150mm
For use in small handheld devices, suitable for precision parts.
Medium size: 150mm - 300mm
For medium-sized equipment, suitable for metal parts and medium-sized machined components.
Large: 300mm or more
Used in large equipment or automated production lines, suitable for processing large workpieces and castings.
silk length
Short wire (10mm - 20mm): suitable for deburring and surface treatment.
Medium wire (20mm - 40mm): suitable for moderate deburring and even texture processing.
Filament (above 40mm): suitable for adding burrs and more efficient.
thickness
Generally 5mm to 50mm, selected according to equipment and task requirements.
Aperture
Common apertures: 12.7mm, 16mm, 25.4mm, matched according to the turning of the equipment.
The specifications of deburring disc brushes usually consist of size, hole diameter, brush filament type and application scenario. For example:
Specification example
DB-150x16-CN
DB: Deburring Disc Brush
150: Diameter 150mm
16: Aperture 16mm
CN: Silicon carbide nylon yarn
Features: Used for moderate deburring of metal parts.
DB-200x25-SS
200: Diameter 200mm
25: Aperture 25mm
SS: stainless steel wire
Features: Suitable for heavy metal deburring tasks such as casting cleaning.
DB-300x25-CN-F
F: Flexible nylon material, suitable for surface polishing and slight deburring
Usage scenarios
Industrial manufacturing
Application: Deburring after parts are processed, suitable for aluminum alloy, stainless steel and other metal parts.
Typical scenarios: post-processing of CNC machined parts, cleaning of engine parts.
Foundry industry
Application: Flash and burr removal of castings, and surface smoothing.
Typical scenarios: Surface cleaning of heavy industrial iron castings and steel parts.
Electronics industry
Application: Surface finishing and light deburring of small precision parts.
Typical scenarios: processing of electronic connectors and conductive parts.
Aerospace
Application: Surface treatment of high-precision parts, deburring without damaging the substrate.
Typical scenarios: turbine blades, composite parts.
Automated production line
Application: deburring and surface treatment of mass-processed parts on assembly lines.
Typical scenario: Surface cleaning of metal parts in automated production.
Service life
Material affects lifespan
Wire brush: 3-6 months, suitable for heavy cleaning, but wears out quickly.
Nylon abrasive brush: 6-12 months, good wear resistance, suitable for continuous operation.
Silicon carbide abrasive brush: 4-8 months, performs well in high-temperature and high-intensity scenes.
Workload: Heavy cleaning tasks reduce service life.
Surface Hardness: Wear faster when working with hard surfaces.
Frequency of use: long-term continuous service life is reduced.
Average life range
Light duty: 9-12 months.
Moderate duty: 6-9 months.
Heavy tasks: 3-6 months.
Ways to extend life
Clean brush wires regularly to avoid clogging.
Avoid excessive pressure or high-speed friction during use.
Choose brush filament materials that match the task to reduce unnecessary wear and tear.
If you need further information about specific models or manufacturers, you can contact the supplier to provide detailed product manuals or customized solutions.
